SKU: SLBSFB12

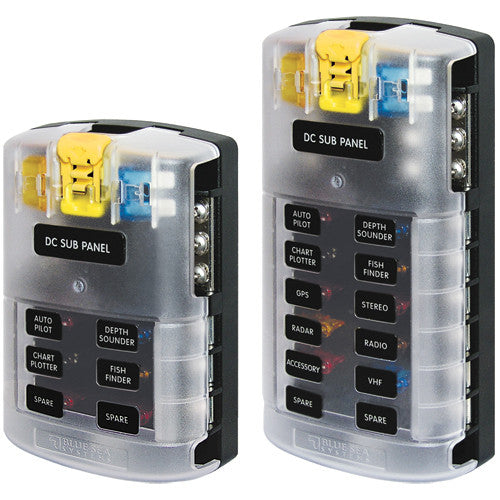

BLUE SEA Fuse Block

Vendor SeeLite
Regular price $79.99
Sale price $79.99 Regular price
Sale Sold out
Unit price
/per
Circuit:
This is a pre order item. We will ship it when it comes in stock.

Organize and protect circuits with a covered fuse block

Fuse Blocks are an effective method of protection to prevent damage to wiring and possible fire in the event of an over-loaded or short circuit. These Blue Sea Systems space-saving fuse blocks can provide protection for new installations or when the panel has run out of breakers. Often used for electronic installations, these fuse blocks can be fed by one breaker from the distribution panel and supply power to 6 or 12 additional circuits. Their compact size allows them to be installed in tight spaces close to the loads they protect. Available with or without a ground bus to match the requirements of your application. Accept ATO/ATC fuses that provide protection from 1 amp to 40amps.

Features:

  • Positive distribution bus with #10-32 stud
  • Can be used for 24-hour circuits
  • Available with or without cover
  • Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems" Small Format Labels
  • Tin-plated copper buses and fuse clips give up to 30A per circuit protection
  • Accepts ring or snap fork type terminals
  • Accepts ATO® and ATC® fast acting blade fuses
  • Fuses sold separately
  • Includes 20 write-on labels included and accepts square pre-made labels
  • Lifetime warranty

Specifications 6 Circuit w/ Neg bus

  • Circuits: 6
  • Maximum Amperage: 100A per block/ 30A per circuit
  • Maximum Voltage: 32V
  • Mounting: # 8 screw
  • Negative bus fasteners: #10-32
  • Positive bus fasteners: #10-32
  • Dimensions: 4 7/8”L x 3 5/16”W x 1 ½”Deep
  • Weight: .5 Lbs.



Specifications 12 Circuit w/Neg bus

  • Circuits: 12
  • Maximum Amperage: 100A per block/ 30A per circuit
  • Maximum Voltage: 32V
  • Mounting: # 8 screw
  • Negative bus fasteners: #10-32
  • Positive bus fasteners: #10-32
  • Dimensions: 6 1/2”L x 3 5/16”W x 1 ½”Deep
  • Weight: .75 Lbs.
